FTS
Introducing the TalosAvionics Flight Termination System (FTS)
In the rapidly evolving landscape of unmanned aerial systems (UAS), ensuring
safety and compliance is paramount, especially when operating in proximity to
inhabited areas or sensitive zones like airports. At TalosAvionics, we understand
these challenges, which is why we’ve developed a cutting-edge Flight Termination
System (FTS) tailored for large drones, including the DJI AGRAS series or similar, renowned for
agricultural operations.
Why Choose TalosAvionics FTS?
Our FTS is engineered to meet and exceed the stringent requirements outlined by
the European Union Aviation Safety Agency (EASA), particularly for operations up to
Specific Assurance and Integrity Level (SAIL) III. This system is designed to
independently terminate a drone’s flight, either by triggering a controlled crash or
enabling an emergency landing procedure, ensuring that the drone remains within the
designated operational volume, even in the event of a system failure.
Key Features of TalosAvionics FTS
Our FTS operates entirely independently of the drone’s existing systems, ensuring that no single point of failure can compromise its function. This aligns with EASA’s requirement for the segregation of the FTS from the UAS flight control system architecture.
The FTS is equipped with a high-power relay that can cut the drone’s power supply from the battery, effectively ending the flight. This relay is driven by our proprietary full-duplex communication system, offering a reliable range of over 10 km or 50 km, depending on the model and customer specifications.
TalosAvionics FTS undergoes rigorous testing to ensure its reliability under various operational conditions. Our system is designed to comply with EASA’s prescribed flight tests, ensuring that the FTS will perform as intended in real-world scenarios.
Our FTS is fully compliant with EASA’s Means of Compliance (MoC) document Light-UAS.2511-01. This guarantees that the probability of a drone exiting the ground risk buffer is minimized, even under extreme conditions.
We understand that every operation is unique. That’s why our FTS is customizable, offering different communication ranges and activation options based on your specific operational needs.

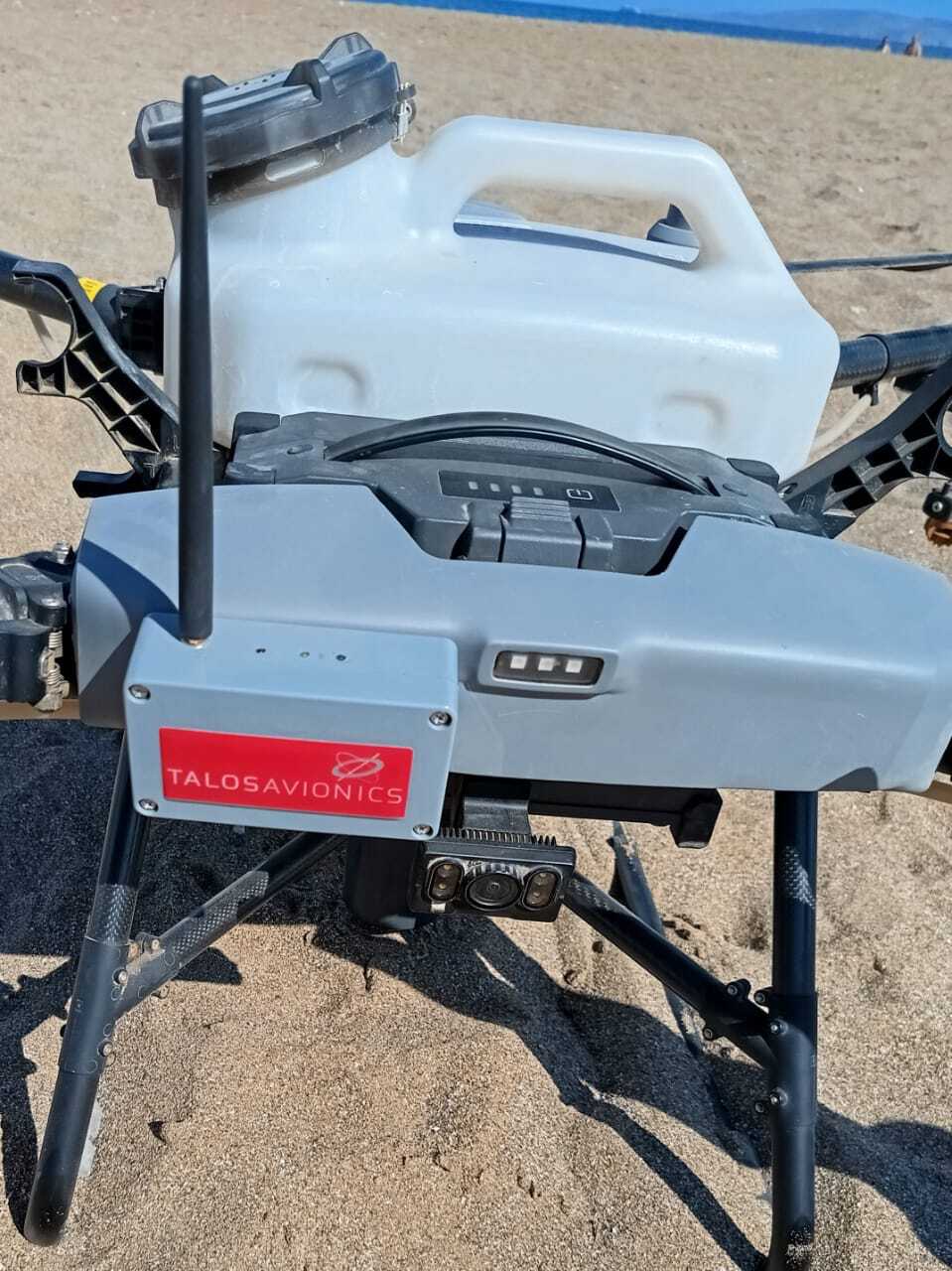

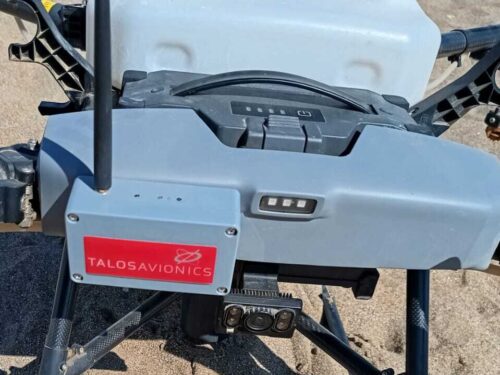

RETROFIT FTS
for high power drones as DJI Agras and others
LONG RANGE EMBEDDED FTS
for drone manufacturers
MEDIUM RANGE EMBEDDED FTS
for drone manufacturers
Product Comparison
Model | RETROFIT FTS | MEDIUM RANGE EMBEDDED FTS | LONG RANGE EMBEDDED FTS | Image |  |  |  |
|---|---|---|---|
POWER DISCONNECTION UP TO 60 A | FOR DRONE MANUFACTURERS | FOR DRONE MANUFACTURERS | |
Frequency of operation | Transmit 868.2 MHZ, 868.4 MHz Receive 869.525 MHz, 868.2 MHz, 868.4 MHz | Transmit 868.2 MHZ, 868.4 MHz Receive 869.525 MHz, 868.2 MHz, 868.4 MHz | Transmit 869.525MHZ Receive 869.525 MHz, 868.2 MHz, 868.4 MHz |
Transmitted Power | 0.25W, 14dbm | 0.25W, 14dbm | 0.5W, 27dbm |
Receiver sensitivity | -110db | -110db | -120db |
Range | 5Km to 10Km, depending on installation and antenna | 5Km to 10Km, depending on installation and antenna | 50Km to 80Km, depending on installation and antenna |
Connectivity | – | via TTL I/O, UART, I2C | via TTL I/O, UART, I2C |
Power Supply | depends on the installation | 5V | 5V |
